**Comprehensive Purification and Treatment Plan for Organic Waste Gas in Steel Drum Production Process**
*Shanghai Qiaosheng Electromechanical Complete Equipment Co., Ltd. – Ding Ping*
Ding Ping presented the latest exhaust gas purification technology at the industry conference, highlighting the importance of environmental protection in manufacturing.
Since January 1, 2015, the new national environmental protection law has been implemented, bringing stricter regulations to polluting industries. The key features include:
1. **Stricter Penalties**: Polluting enterprises will face daily fines with no upper limit, ensuring stronger enforcement.
2. **Enforcement Measures**: Environmental authorities can shut down polluters, seize equipment, and enforce administrative actions.
3. **Public Monitoring**: Enhanced mechanisms for public monitoring and early warning systems have been introduced.
4. **Criminal Liability**: Serious pollution cases may lead to criminal charges against responsible individuals or organizations.
In response to these regulations, our company has developed a comprehensive solution for treating organic waste gas in steel drum production. After over a decade of research and development, we now offer advanced purification technologies that meet the GB16297-1996 emission standards.
### Purpose of the Governance
Our treatment plan ensures that toxic and harmful organic waste gases from the steel drum production process are effectively removed, meeting the following emission limits:
| Contaminant | Maximum Allowable Emission Concentration (mg/m³) |
|-------------|--------------------------------------------------|
| Benzene | 12 |
| Toluene | 40 |
| Xylene | 70 |
### Governance Methods
We offer two main approaches based on the temperature of the waste gas:
#### 1. **Low-Temperature Organic Waste Gas Treatment**
- **(1) Decontamination Adsorption Method**
Collect waste gas from the spray booth and leveling section → decontamination device → activated carbon adsorption → discharge to standard.
- **(2) Plasma Shock + Adsorption Method**
Collect waste gas → decontamination → plasma shock → activated carbon adsorption → discharge.
#### 2. **High-Temperature Organic Waste Gas Treatment**
- **(1) Direct Combustion Method**
Collect waste gas from the drying room → combustion chamber → heat recovery → purified discharge.
- **(2) Catalytic Combustion Method**
Collect waste gas → primary purification → catalytic combustion → heat recovery → preheat and discharge.
### Treatment Equipment Introduction
We provide various equipment tailored to different needs:
#### 1. **Low-Temperature Waste Gas Treatment Equipment**

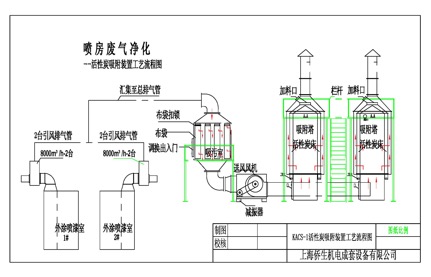

- **KACS-I Type**: Uses physical adsorption. Includes decontamination room, adsorption chamber, and PLC control system.

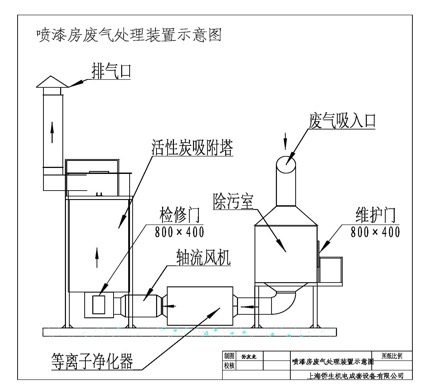

- **KACS-II Type**: Combines plasma shock and adsorption. Features plasma purification room, induced draft fan, and adsorption chamber.
#### 2. **High-Temperature Waste Gas Treatment Equipment**

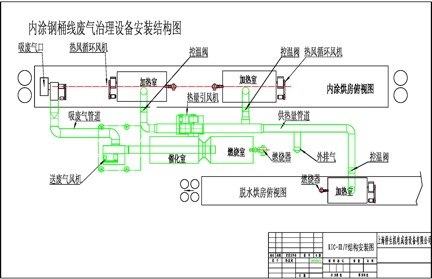

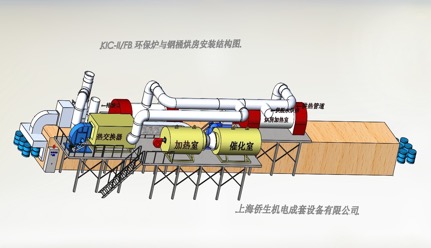

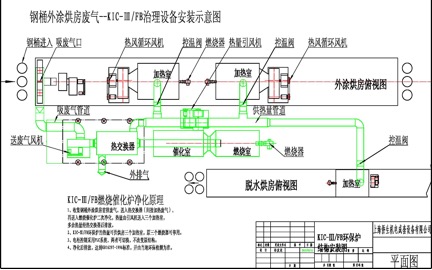

- **KIC-III/FB Type**: Utilizes catalytic combustion. Includes waste fan, heat exchanger, combustion chamber, and PLC control.
- **KIC-III/F Type**: Also uses catalytic combustion. Features burner, combustion chamber, and catalytic chamber.
### Evaluation of Purification Effectiveness
| No. | Exhaust Source | Treatment Process | Equipment | Effectiveness |
|-----|------------------------|---------------------------|--------------|---------------------------------------|
| 1 | Spray Booth & Leveling | Physical Adsorption | KACS-I | Meets emission standards, short carbon life |
| 2 | Spray Booth & Leveling | Plasma Shock + Adsorption | KACS-II | Meets standards, extends carbon life |
| 3 | Exterior Coating Oven | Catalytic Combustion | KIC-III/FB | Meets standards, saves 10–15% energy |
| 4 | Inner Drying Room | Catalytic Combustion | KIC-III/F | Meets standards, saves 5–10% energy |
Our solutions not only ensure compliance with environmental laws but also improve operational efficiency and reduce long-term costs. By choosing our system, manufacturers can protect both the environment and their business.
